DIAMOND BLACK MATT

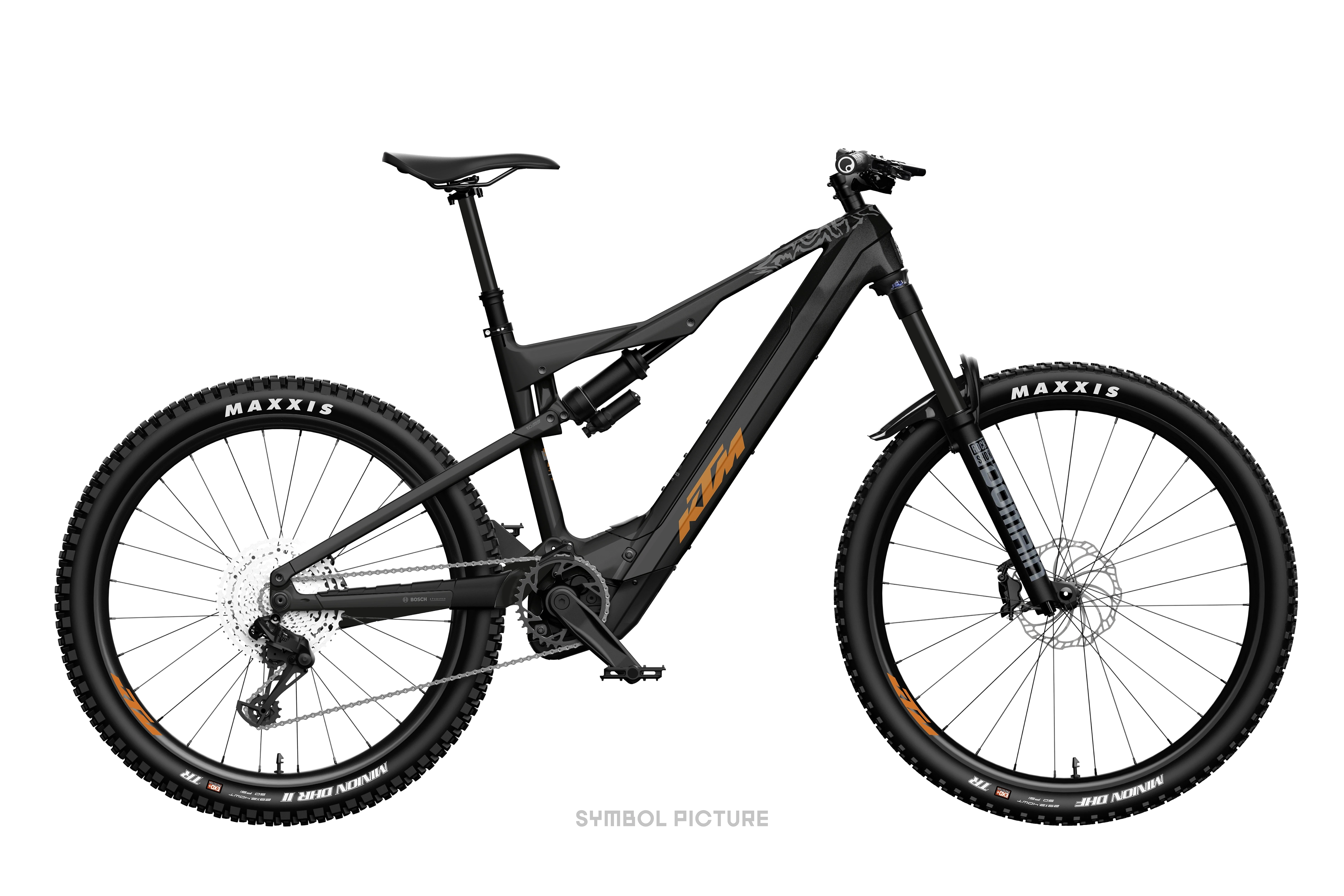

ALL IN. ALL OUT. When the trail gets steeper, faster, and more technical, the MACINA PROWLER comes into its own. With 180 mm of travel up front and 170 mm at the rear, it is uncompromisingly designed for demanding enduro trails. The optimized geometry meets the proven STRAIGHT-LINE-LINK (SLL) suspension concept, delivering sensitive response, maximum traction, and control. The proven DiMMiX (Dimension-Mix) combines a 29-inch front wheel for stability and precise handling with an agile 27.5-inch rear wheel for optimal traction and direct power transfer. Power comes from the Bosch Performance Line CX-R, delivering up to 120 Nm of torque, 750 watts of maximum motor power, and 600% support. The 800 Wh PowerTube provides the range for long days on the trail and can be conveniently removed upwards from the downtube thanks to POWER TUBE TOP LOADER (PTTL).

Specification

Specification

FRAME Mac Prowler PERFORMANCE CARBON 170|PT800 Bosch BDU38/M7230
FORK RockShox DOMAIN RC 29" 180mm 15x110
SHOCK FOX FLOAT X Performance 2P-Lockout 250x75
MOTOR Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
DISPLAY Bosch PURION 200 Display & Remote
BATTERY Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
CHARGER Bosch STANDARD Charger 4A
R.DERAILL SRAM EAGLE 70 Transmission 12-Speed
SHIFTLEV. Front: Shimano MT500-L SP-Lever - Rear: SRAM EAGLE 70 Transmission 1-Click
CRANKSET KTM E-TRAIL ISIS 160mm Q16
CHAIN SRAM GX Eagle T-Type 12speed
WHEELSET Front: KTM E-COMP Trail 29 CL 110/15TA|622x30TC TLR by DT - Rear: KTM E-COMP Trail 27 CL 148/12TA|584x35TC TLR by DT
TIRE F Maxxis Minion DHX 3C MaxxGrip Exo+ 63-622
TIRE R Maxxis Minion DHX MaxxTerra DD 63-584
GRIPS Ergon GE10
BAR KTM TEAM Trail35 rizer25 800mm
STEM KTM TEAM Trail35
HEADSET Acros AICR intern 1.1/8"-1.5" angle lim
SADDLE KTM TEAM ENDURO Cr-Mo Rails
SEATPOST KTM COMP dropper internal 30.9 T:150
PEDALS MTB-Pedal alloy VPE-527 flat

Geometry

A Size 43
B Seattube length 430
C Toptube length 602
D Seat angle 75,6° (74,3°)
E Head angle 64,1°
F Headtube length 100
G Chainstay length 452
H Wheelbase 1241
I Stack 618
J Reach 443
K Standover height 839
L BB drop 0
A Size 48
B Seattube length 450
C Toptube length 622
D Seat angle 75,6° (74,4°)
E Head angle 64,1°
F Headtube length 110
G Chainstay length 452
H Wheelbase 1263
I Stack 627
J Reach 461
K Standover height 842
L BB drop 0
A Size 53
B Seattube length 480
C Toptube length 647
D Seat angle 75,6° (74,4°)
E Head angle 64,1°
F Headtube length 125
G Chainstay length 452
H Wheelbase 1292
I Stack 641
J Reach 483
K Standover height 847
L BB drop 0

Application Area

Enduro
All Mountain
Marathon
Tour
Casual
Commute
Macina Prowler

Sitting Position

Stretched
Upright
